Tank Truck Mud Concrete Suction And Delivery Wear resistant Rubber Hose

Rincian produk

Tempat asal: Cina

Nama merek: OEM/ODM

Sertifikasi: ISO 9001

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 buah

Harga: $20/m

Kemasan rincian: Tas anyaman atau kotak kayu

Syarat-syarat pembayaran: L/C, T/T, Western Union

Menyediakan kemampuan: 2000 Meter Per Hari

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Suhu Kerja:	-40 hingga 85°C	Bantuan:	Beberapa lapisan serat sintetis atau kawat baja
Bahan:	Karet yang diperkuat	Panjang:	Dapat disesuaikan, biasanya dari 1 meter hingga 10 meter
Aplikasi:	Penyedotan dan pengiriman truk tangki	Akhiri perlengkapan:	Flensa, camlock, kopling cepat, atau konektor berulir
Kepatuhan Standar:	ISO 9001	Diameter Dalam:	Bervariasi dari 6mm hingga 300mm
Kemampuan:	Ketahanan aus	Berat:	Bervariasi tergantung pada ukuran dan bahan, biasanya 0,5 hingga 5 kg/m2
Permukaan:	Dibungkus Kain atau Halus	Peringkat Tekanan:	Hingga 30 bar (tergantung jenis selang)

Suhu Kerja:	-40 hingga 85°C
Bantuan:	Beberapa lapisan serat sintetis atau kawat baja
Bahan:	Karet yang diperkuat
Panjang:	Dapat disesuaikan, biasanya dari 1 meter hingga 10 meter
Aplikasi:	Penyedotan dan pengiriman truk tangki
Akhiri perlengkapan:	Flensa, camlock, kopling cepat, atau konektor berulir
Kepatuhan Standar:	ISO 9001
Diameter Dalam:	Bervariasi dari 6mm hingga 300mm
Kemampuan:	Ketahanan aus
Berat:	Bervariasi tergantung pada ukuran dan bahan, biasanya 0,5 hingga 5 kg/m2
Permukaan:	Dibungkus Kain atau Halus
Peringkat Tekanan:	Hingga 30 bar (tergantung jenis selang)

Deskripsi

Tank Truck Mud Concrete Suction And Delivery Wear resistant Rubber Hose

Heavy Duty Mud/Concrete Suction and Delivery Flexible Rubber Hose Especially For Tank Truck

Product Description

This hose is specially designed for suction and delivery of concrete, cement slurry, mortar and other abrasive media on concrete mixer trucks, pump trucks and related construction equipment. It features excellent wear resistance, pressure resistance, flexibility and aging resistance, suitable for harsh construction site environments.

Key Features

Extremely abrasion-resistant inner tube for extended service life
High flexibility for easy handling, routing and installation
Resists kinking, twisting and collapse during suction and delivery
High pressure and vacuum resistance for stable performance
Excellent ozone, weather and aging resistance for outdoor use
Smooth inner bore reduces flow resistance and prevents concrete residue adhesion
Rugged construction withstands harsh job site handling and impact

Structure

Inner tube: Black, smooth, highly wear-resistant synthetic rubber, resistant to abrasion from sand, aggregate and cement.
Reinforcement layer: High-strength textile cord with helical steel wire support, ensuring burst resistance and preventing collapse under suction pressure.
Cover: Black, weather-resistant synthetic rubber, resistant to ozone, sunlight, oil and mechanical abrasion.

Temperature Range

-40°C to +85°C (-40°F to +185°F)

Characteristics

Extremely wear-resistant inner tube for long service life
Flexible and kink-resistant for easy handling
Withstands both positive delivery pressure and negative suction pressure
Good ozone and weather resistance for outdoor use
Suitable for concrete transfer on mixer trucks and construction sites

Application

Concrete suction and discharge on mixer trucks; conveying concrete, mortar, cement slurry and similar abrasive media in construction projects.

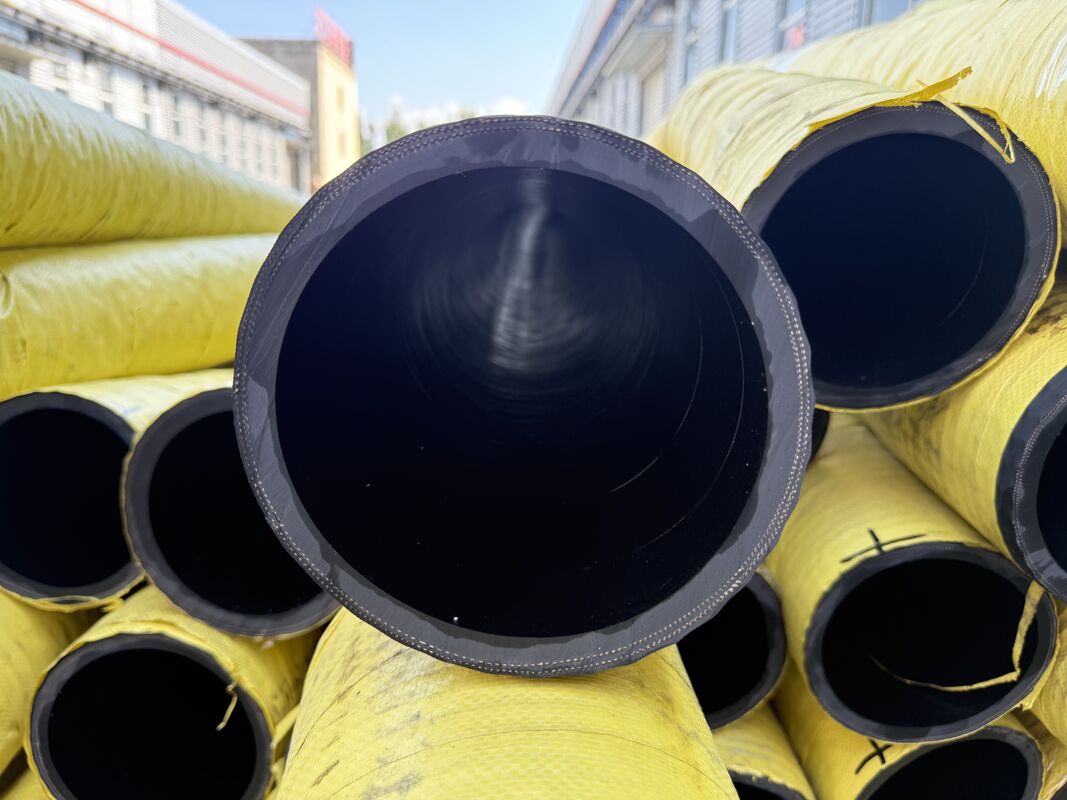

Tank Truck Mud Concrete Suction And Delivery Wear resistant Rubber Hose 1

Technical Specification

Size	I.D.	O.D.	W.P.		B.P.
Inch	mm	mm	Bar	Psi	Bar	Psi
1-1/4''	32	46	10	150	30	450
1-1/2''	38	53	10	150	30	450
2''	50	69	10	150	30	450
1-1/2''	64	83	10	150	30	450
3''	76	98	10	150	30	450
3-1/2''	89	113	10	150	30	450
4''	102	126	10	150	30	450
5''	127	153	10	150	30	450
6''	152	180	10	150	30	450
8''	203	235	10	150	30	450
10''	254	287	10	150	30	450
12''	305	335	10	150	30	450
